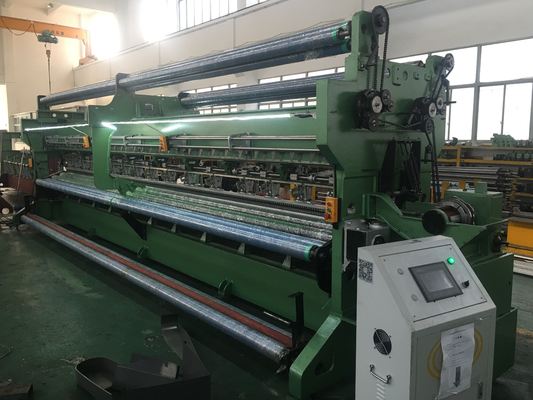

Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production

1
MOQ
$43,500-45,000
가격
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
힘: 7.2W
뜨개질 스타일: 경사
편성 방법: 더블
컴퓨터 화: 예
치수: 8200*1700*2400
계량기: E2/E6/E7/E8/E9/E12, E18, E22, E24, E26, E28, E30
뜨개질 너비: 135-260
작동 너비: 90,720
제어: plc
무게: 7000kg
막대 수: 6
메인 모터: 3 kW
인치 모터: 0.75 kW
속도: 200-700 rpm
핵심 구성 요소: 모터, PLC, 펌프, 기어 박스
강조하다:

1 Year Warranty Double Needle Bed Warp Knitting Machine

,

7000 KG Weight Raschel Knitting Machine

,

8200*1700*2400 Dimension Safety Net Machine
기본 정보
원래 장소: 중국 장수
브랜드 이름: Chenye
결제 및 배송 조건
제품 설명
Double Needle Bed Warp Knitting Tricot Machine for Safety Net
Product Description
This high-performance warp knitting machine is designed for producing specialized fabrics including safety nets, backing fabrics, short pie plush fabrics, and spacer fabrics.
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 0
Key Features
  • Equipped with eccentric connecting mechanism for precise operation
  • Knitting elements use four-bar mechanism with short stroke latch needle
  • Electronic batching device (EBA) for consistent fabric quality
  • Electronically controlled fabric take-up system
  • Available in multiple gauges: E18, E22, E24, E26, E28, E30
  • 6-bar configuration for versatile fabric production
  • Separately-standing take-up mechanism
Technical Specifications
Machine Type Machine Size (mm) Weight (kg) Main Motor (KW) Inching Motor (KW) Speed (rpm)
DROEL96-90 4000x5600x3600 8000 3 0.75 200-700
DROEL96-110 4800x5500x3600 10000 3 0.75 200-700

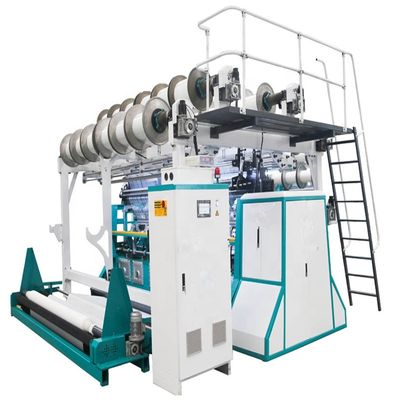

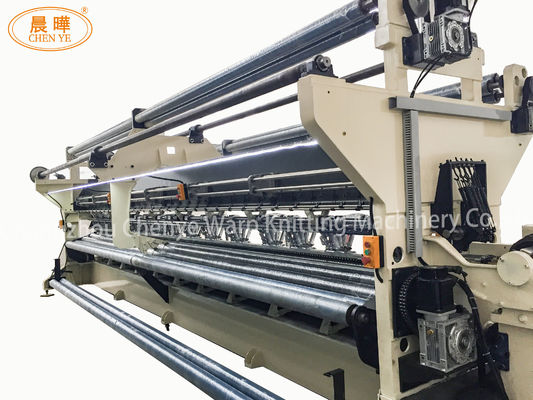

Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 1 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 2 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 3 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 4

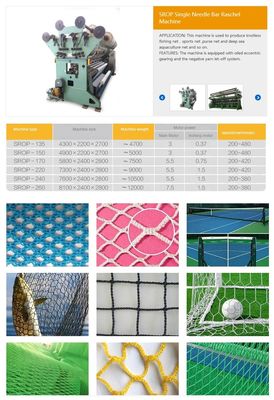

Net Samples
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 5

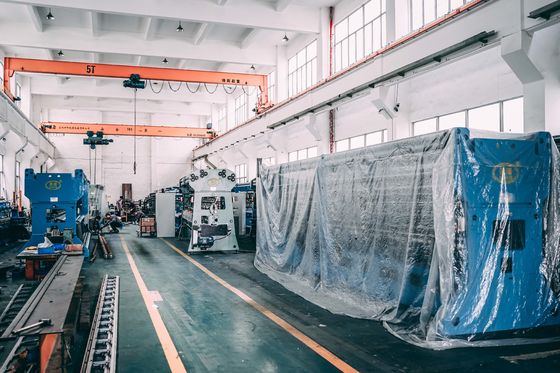

Company Profile
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 6
Chenye is a professional Raschel Knitting Machine manufacturer with extensive experience in the field. Known for product quality and service, Chenye is a leading company in China with products exported to over 20 countries. We continuously innovate to develop new products that meet diverse customer requirements. Long-term business relationships are fundamental to our philosophy, and we take pride in consistently delivering quality products and services.
Exhibition
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 7
Service
  • On-site commissioning and engineer training available
  • Training programs at our factory for maintenance and production techniques
  • 24/7 online support team
  • Local service engineers available in some countries
  • Complimentary maintenance during company visits to your country
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 8
Product Packaging
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 9 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 10 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 11 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 12
Packaging Details: 40HQ container per machine set, extra parts packaged in wooden boxes, machines secured with steel straps.
Frequently Asked Questions
What is the delivery time?
Approximately 60 days.
Can we send samples for customizing the machine?
Yes, our engineers will analyze your samples and recommend machine customization accordingly.
What is the warranty period?
One year warranty with complimentary spare parts included in the shipment.
What is the production capacity of this machine?
Production varies by net design and weight, with standard nets producing approximately 1200 meters per 24 hours.
